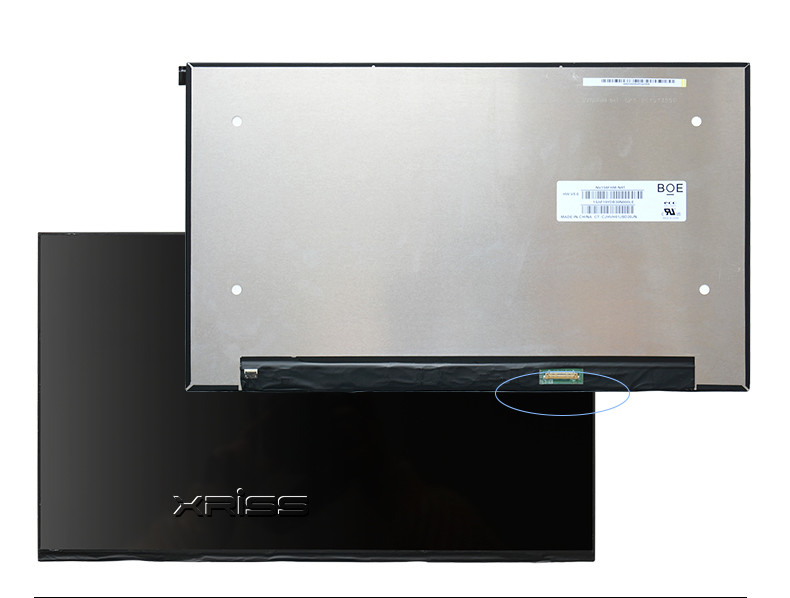

15.6'' Laptop LCD Screen NV156FHM-N4T B156HAN02.5 IPS FHD 30Pins
Display Replacement
►NV156FHM-N4T** and **B156HAN02.5** are **15.6-inch IPS LCD
notebook screen**, supporting **1920×1080 (FHD) full HD
resolution**, using **30-pin EDP (Embedded DisplayPort)
interface**. This screen has **wide viewing angle, high color
performance, energy saving and low power consumption** and other
advantages. It is suitable for notebook computers of various
brands, especially for users who need to replace the damaged screen
or want to upgrade to IPS HD screen.
---
► **1920×1080 FHD resolution, fine picture quality**
This screen supports **1920×1080 (FHD) resolution**, which provides
**higher pixel density and clearer picture quality** than 1366×768
(HD), which can present more delicate images and sharper text,
making the visual experience more comfortable.
- **Office users**: Clear text display makes document editing,
spreadsheet processing and web browsing easier and reduces eye
fatigue.
- **Video playback**: Full HD resolution makes HD video playback
smoother and richer in color details, suitable for watching movies,
online courses and other content.
► **Gaming experience**: For gamers who need smooth picture
quality, FHD resolution can provide clearer game scenes and improve
immersion.
---
►**IPS wide viewing angle technology, more realistic colors**
NV156FHM-N4T and B156HAN02.5 use **IPS (In-Plane Switching)
technology**. Compared with traditional TN screens, IPS screens
have **wider viewing angles and more accurate color performance**.
- **178° wide viewing angle**: Whether viewed from the front or
side, the screen color and brightness can remain stable without
color cast or distortion.
► **High color reproduction**: IPS panels can provide more vivid
and realistic color display, suitable for applications that require
high color accuracy such as photo editing and video editing.
If your notebook currently uses a TN screen, after replacing it
with an IPS screen, you will clearly feel the **improvement in
color saturation and contrast**, bringing a more comfortable visual
experience.
---
► **30-pin EDP interface, widely compatible**
This screen uses **30-pin EDP interface**, which is compatible with
a variety of notebook brands and models, such as, HP, Lenovo, Asus,
Acer, etc.**. Compared with the traditional LVDS interface, the EDP
interface supports faster data transfer rates and provides smoother
picture performance.
Before replacing the screen, please make sure that your laptop
supports **30-pin EDP interface** and **resolution of 1920×1080**
to ensure compatibility.
---
► **LED backlight, energy saving**
- Using **LED backlight technology**, it is more energy-efficient
than traditional CCFL backlight, which helps reduce notebook power
consumption and improve battery life.
► **Uniform brightness, eye protection and comfort**, reducing
screen flickering problems and improving comfort for long-term use.
---
► **Applicable scenarios and recommended groups**
**Laptop screen replacement**: If your laptop screen is damaged,
has bright spots, a black screen, or abnormal colors, this screen
can be used as a perfect replacement.
**HD screen upgrade**: If your original screen is a 1366×768 (HD)
low-resolution screen, the picture quality will be greatly improved
after upgrading to 1920×1080 (FHD).
**Professional design and video editing**: The high color
reproduction of the IPS screen makes photo editing, video editing
and other tasks more accurate.
**Students and office users**: High-definition display makes
document processing, online learning and video conferencing more
efficient and comfortable.
---
►**Installation and use precautions**
1. **Confirm compatibility**: Make sure your laptop supports
**30-pin EDP interface and 1920×1080 resolution**, otherwise
incompatibility issues may occur.
2. **Carefully remove the old screen**: When replacing the screen,
please handle the cable with care to avoid damaging the screen or
motherboard interface.
3. **Check the screen connection**: After installing the new
screen, please turn on the computer for testing. If a black screen
or flickering problem occurs, please check whether the cable
connection is firm.
4. **Adjust the display settings**: After replacement, you can
adjust the screen brightness, color mode, etc. to achieve the best
visual effect.
---
► **Summary**
NV156FHM-N4T and B156HAN02.5 are a **15.6-inch IPS Full HD (FHD)
notebook LCD screen**, with **1920×1080 HD resolution, wide viewing
angle, high color reproduction, energy-saving LED backlight, 30-pin
EDP interface** and other advantages, suitable for notebook screen
repair or upgrade. For users who need **higher resolution, more
realistic colors, and wider viewing angle**, this screen is an
**cost-effective** ideal choice!
| Model Name | NV156FHM-N4T |
| Resolution | 1920(RGB)×1080, FHD |
| Luminance | 250(Typ.)(cd/m²) |
| Viewing Ang | |
| Contrast Ratio | 800: 1 (Typ.) (TM) |
| Interface Type | - eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector
|
